Strong acid and alkali resistant PP cabinet

Model and external dimensions (length * width * height/mm) Capacity Gallons/liter Number of panels Door type Color XGPP4F430 * 430 * 5604/151 Single door porcelain white XGPP12F590 * 460 * 89012/451 Single door porcelain white XGPP22F2590 * 460 * 165022/832 Single door porcelain white XGPP22F890 * 560 * 89022/831 Double door porcelain white XGPP300F1090 * 460 * 112030/1141 Double door porcelain white XGPP450F1090 * 460 * 165045/1702 Double door porcelain white XGPP600F860 * 860 * 165060/2272 Dou
Products Inquiry

PRODUCT INFORMATION

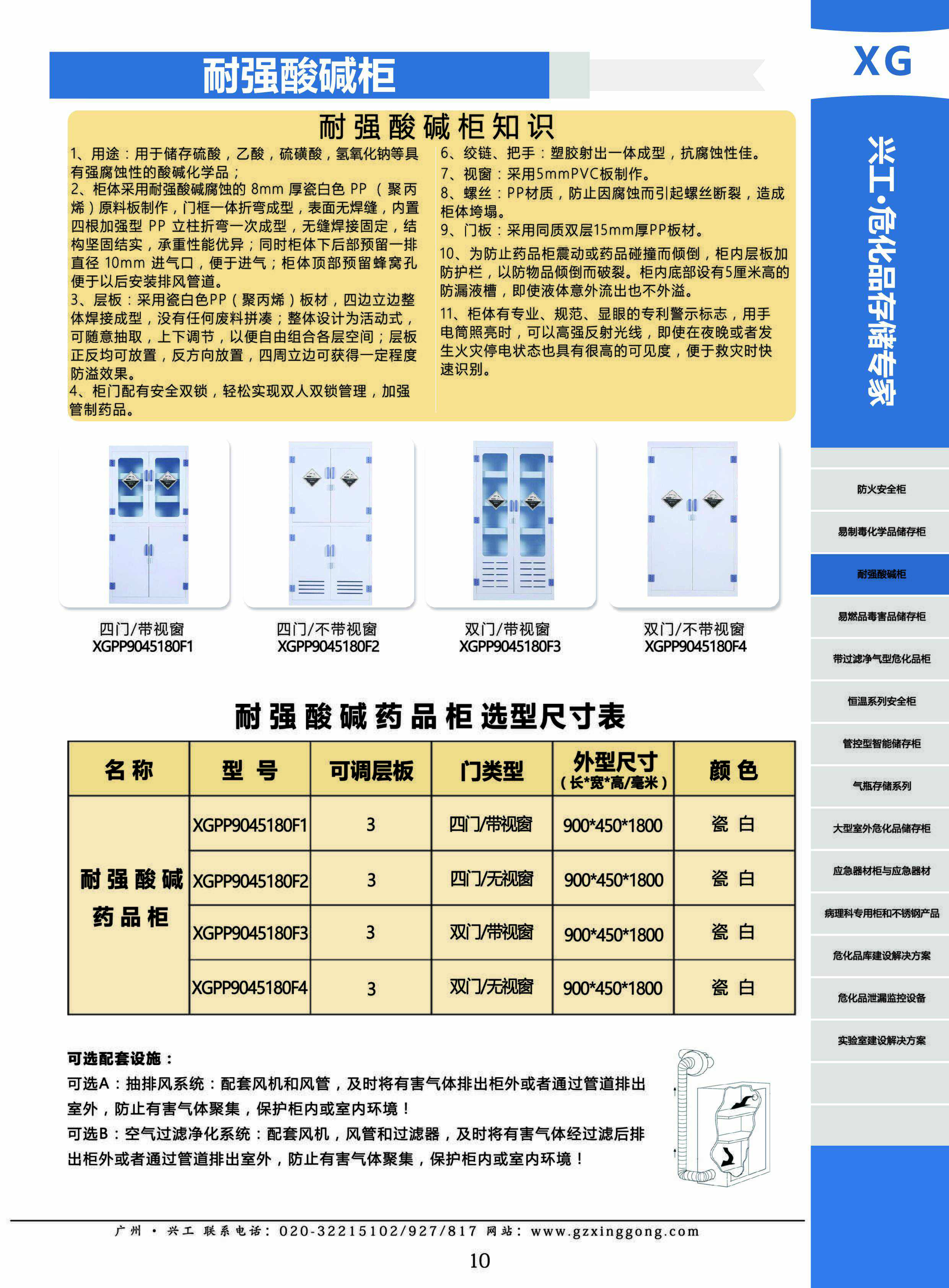

耐强酸碱药品柜

型号

外形尺寸
(长*宽*高/毫米)

层板数

门类型

颜色

XGPP9045180F1

900*450*1800

3

四门/带视窗

瓷白

XGPP9045180F2

900*450*1800

3

四门/无视窗

瓷白

XGPP9045180F3

900*450*1800

3

双门/带视窗

瓷白

XGPP9045180F4

900*450*1800

3

双门/无视窗

瓷白

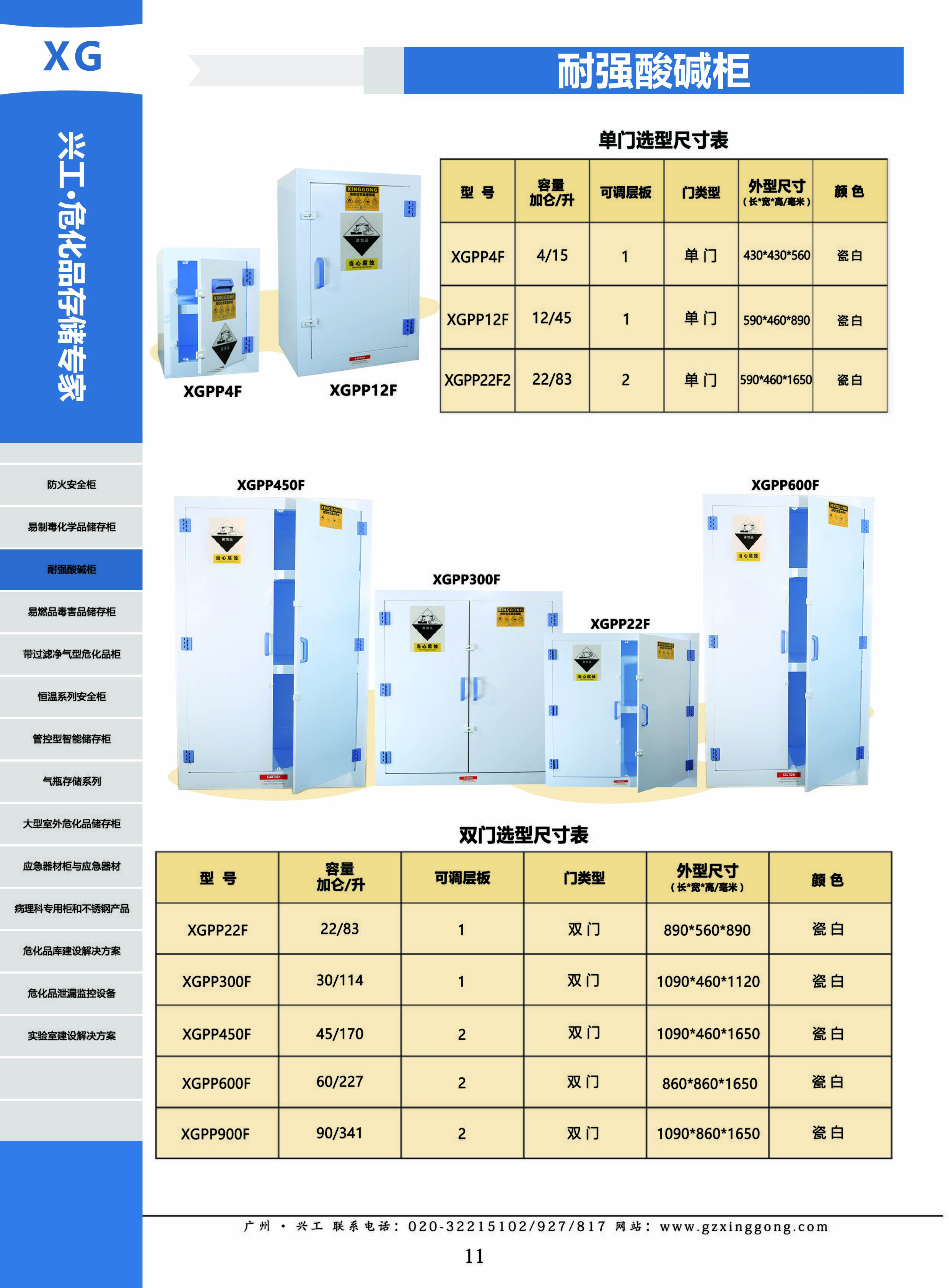

耐强酸碱柜

型号

外型尺寸
(长**/毫米)

容量
加仑/升

层板数

门类型

颜色

XGPP4F

430*430*560

4/15

1

单门

瓷白

XGPP12F

590*460*890

12/45

1

单门

瓷白

XGPP22F2

590*460*1650

22/83

2

单门

瓷白

XGPP22F

890*560*890

22/83

1

双门

瓷白

XGPP300F

1090*460*1120

30/114

1

双门

瓷白

XGPP450F

1090*460*1650

45/170

2

双门

瓷白

XGPP600F

860*860*1650

60/227

2

双门

瓷白

XGPP900F

1090*860*1650

90/341

2

双门

瓷白


Parameters of strong acid and alkali resistant cabinet/PP cabinet:

All PP polypropylene material, storage of highly corrosive hazardous chemicals, never rusting or getting damp! EU CE certification!

1. The cabinet door is equipped with a safety double lock, making it easy to manage two people and two locks, and strengthening the control of drugs.

2. The cabinet body is made of 8mm thick porcelain white PP polypropylene raw material board that is resistant to strong acid and alkali corrosion. The door frame is integrated and bent into shape, with no welding seams on the surface. Four reinforced PP columns are embedded and bent into shape in one go, seamlessly welded and fixed. The structure is sturdy and sturdy, and the load-bearing performance is excellent; At the same time, a row of 10mm diameter air inlets are reserved at the bottom and rear of the cabinet for easy installation of exhaust and air intake in the future. Honeycomb holes are reserved at the top of the cabinet for easy installation of exhaust pipes in the future.

*3. Layer board: Adopting integrated injection molding layer board, with hidden steel pipe reinforcement ribs at the bottom and steel pipes wrapped inside, with a load-bearing capacity of 60-200KG. The overall design is movable and can be freely extracted and placed in suitable compartments, freely combining the space of each layer. The edges above 15mm around have a certain anti leakage effect and a blocking effect on falling objects.

4. Door panel: Made of homogeneous double-layer PP board, equipped with 4 safety and anti-corrosion padlocks on the door, managed by two people and two locks,.

5. Twisted chain: Plastic injection molding, excellent corrosion resistance.

6. Handle: Plastic injection molding, excellent corrosion resistance, equipped with safety double door locks, strengthened control.

7. Window: Made of 5mm PVC board.

8. Screws: Made of PP material to prevent screw breakage caused by corrosion and collapse of the cabinet.

*9. The cabinet is equipped with professional, standardized, and eye-catching patent warning signs. When illuminated by a flashlight, it can reflect light with high intensity, and can provide clear warnings even at night or in case of fire or power outage, making it easy to quickly identify during disaster relief;

10. In order to prevent the medicine cabinet from shaking or collapsing due to collision, anti guardrails are added to the inner layers of the cabinet to prevent items from collapsing and breaking. There is a 5cm high leak proof liquid tank at the bottom of the cabinet to prevent accidental liquid leakage from overflowing;

11. The product has passed the EU CE certification and provides a PP board testing report;
