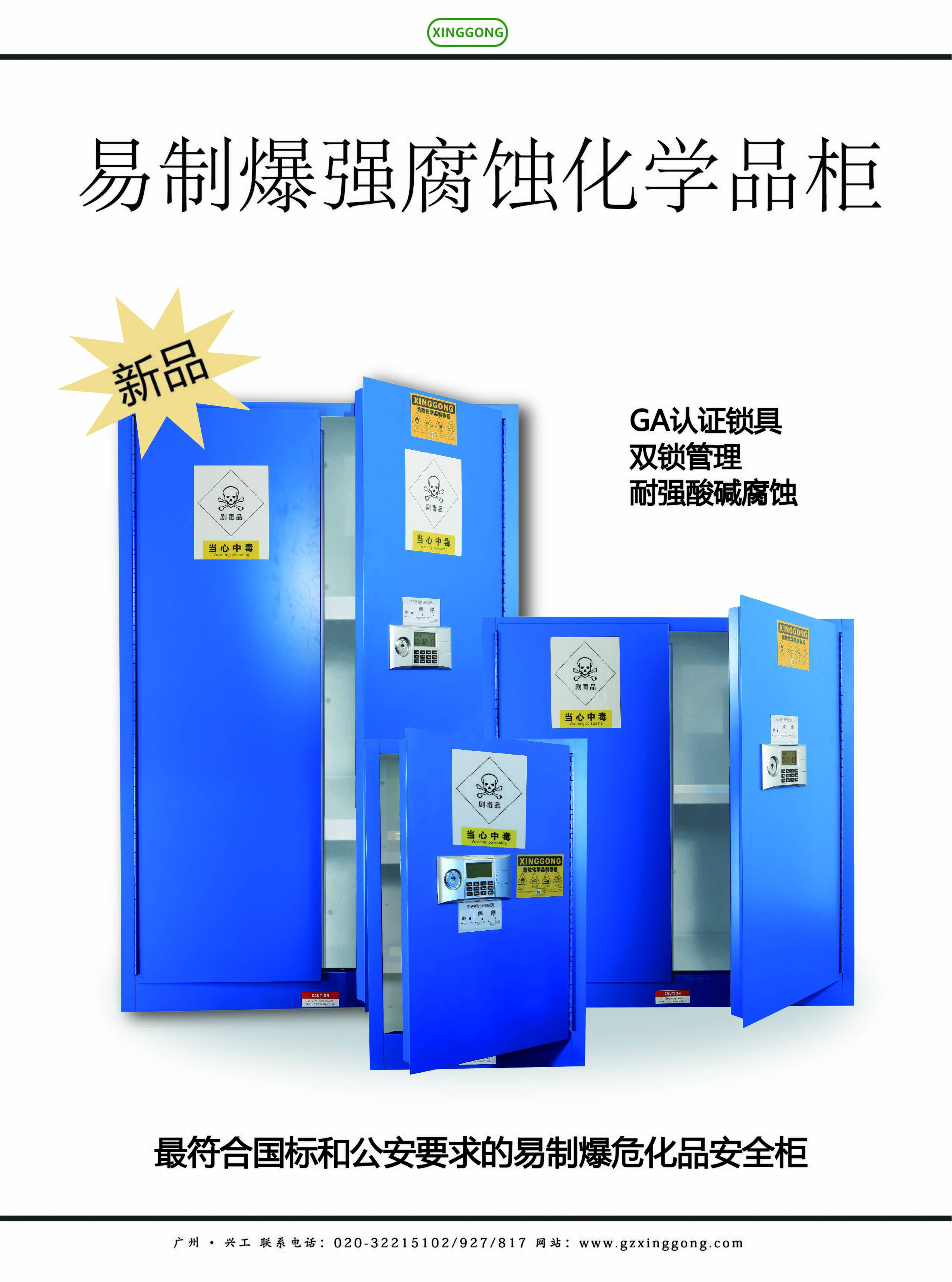

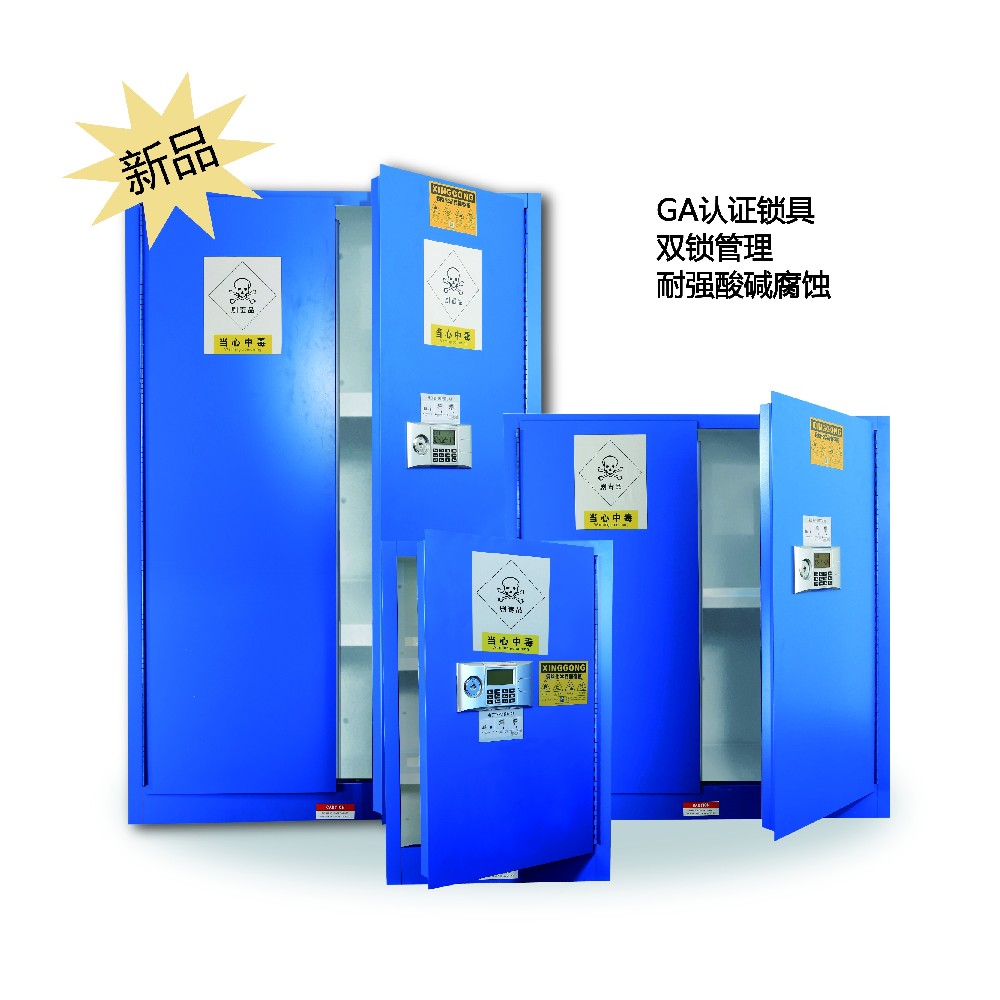

Explosive and highly corrosive chemical cabinet

Explosive and highly corrosive chemical cabinet: The most suitable safety cabinet for explosive and hazardous chemicals in accordance with national standards and public security requirements. Specification, size table, model, and external dimensions (length * width * height/mm), capacity, gallon/liter, number of boards, door type, color selection XGNC4F430 * 430 * 5604/151, single door blue/gray XGNC12F590 * 460 * 89012/451, single door blue/gray XGNC22F (height) 600 * 460 * 165022/832, single d
Products Inquiry

PRODUCT INFORMATION


易制爆强腐蚀化学品柜:最符合国标和公安要求的易制爆危化品安全柜

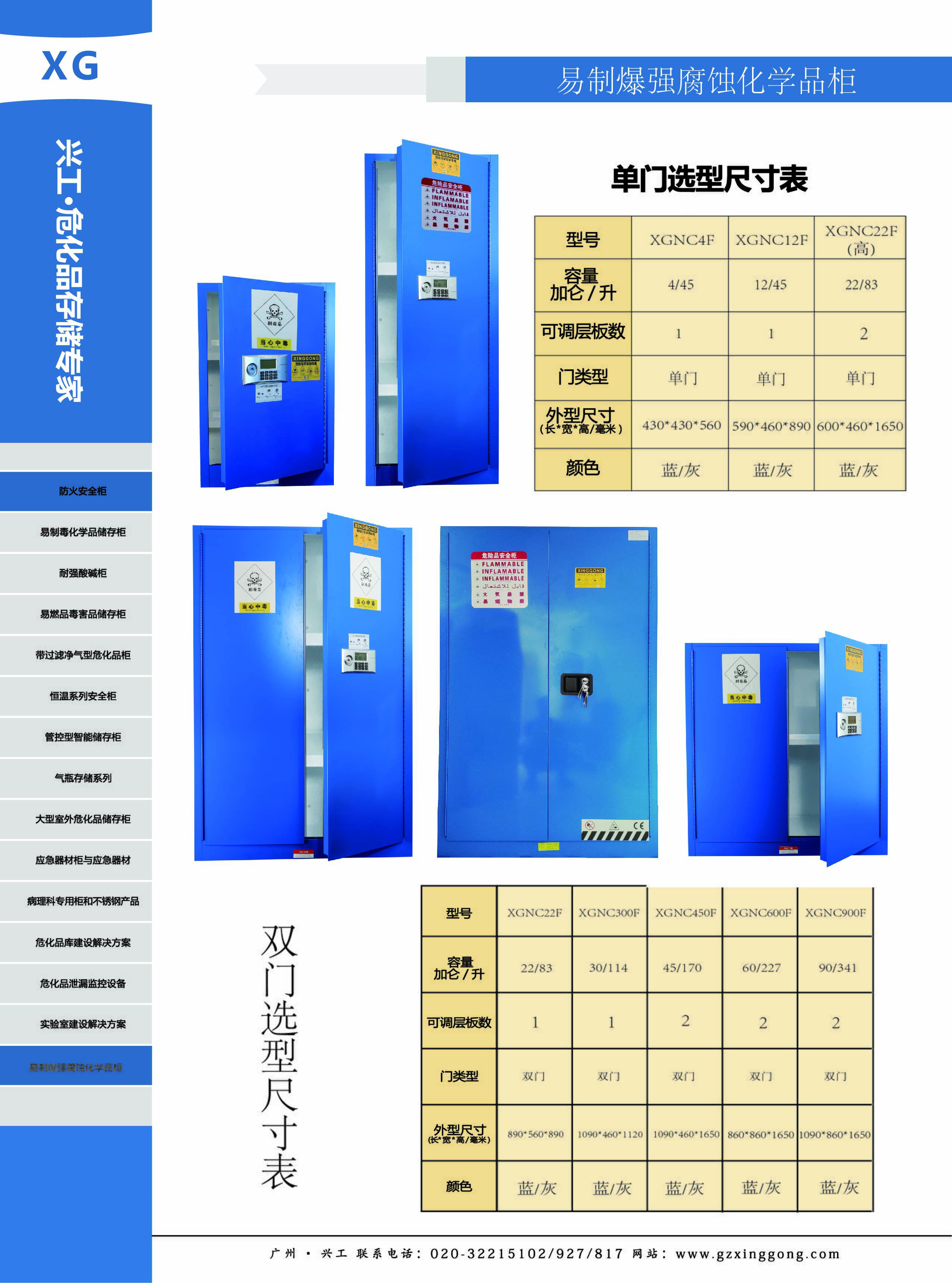

规格尺寸表



型号

外型尺寸
(长*宽*高/毫米)

容量
加仑/升

层板数

门类型

颜色可选

XGNC4F

430*430*560

4/15

1

单门

蓝/灰

XGNC12F

590*460*890

12/45

1

单门

蓝/灰

XGNC22F(高)

600*460*1650

22/83

2

单门

蓝/灰

XGNC22F

890*560*890

22/83

1

双门

蓝/灰

XGNC300F

1090*460*1120

30/114

1

双门

蓝/灰

XGNC450F

1090*460*1650

45/170

2

双门

蓝/灰

XGNC600F

860*860*1650

60/227

2

双门

蓝/灰

XGNC900F

1090*860*1650

90/341

2

双门

蓝/灰

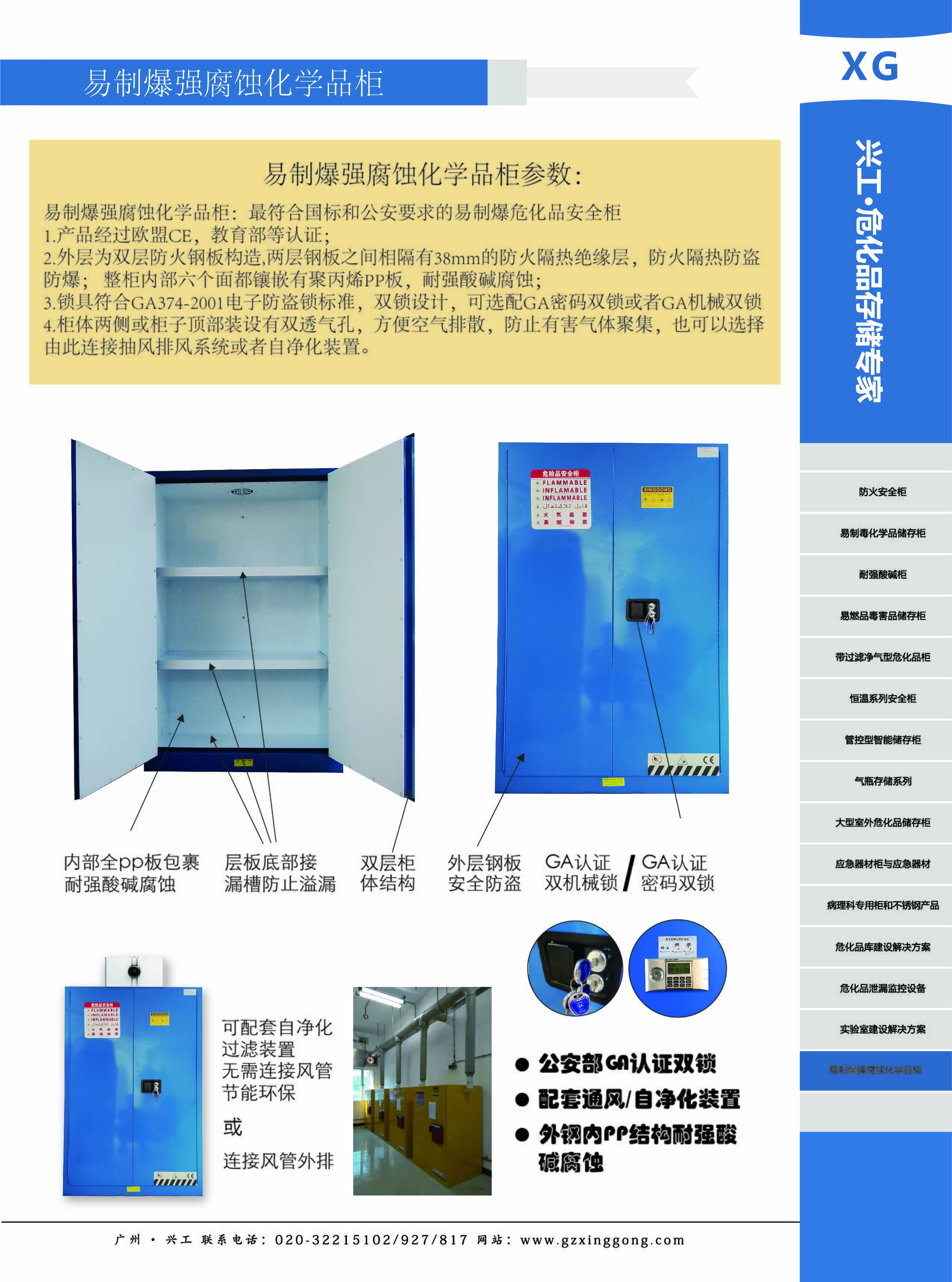

Explosive and highly corrosive chemical cabinet: a safety cabinet for explosive and hazardous chemicals that best meets national standards and public security requirements

1. The product has passed the EU CE certification;

2. Adopting a 1.2mm thick double-layer fireproof steel plate structure, the high-quality 1.2mm steel plate is spot welded for a longer service life and better explosion-proof performance; There is a 38mm fire-resistant and heat-insulating air insulation layer between the two layers of steel plates, which is fire-resistant, heat-insulating, anti-theft, and explosion-proof;

3. The uniquely designed three-point linkage door lock is equipped with an electronic password lock (* the lock must comply with the GA374-2001 Electronic Anti Theft Lock Standard) and a mechanical lock dual lock design, which can easily achieve dual person dual lock management of hazardous chemicals. When the password is entered incorrectly or severely impacted, an alarm will sound, protecting your highly toxic and easy to produce hazardous chemicals;

4. There is a 5cm high leak proof liquid tank at the bottom of the cabinet to prevent accidental liquid leakage from overflowing;

5. Both sides of the cabinet are equipped with anti fire devices and double ventilation holes with flame suppressors, which facilitate air dispersion and prevent the accumulation of harmful gases. It can also be connected to the exhaust system through this connection;

6. The unique spill proof galvanized steel shelf can guide spilled materials to the back and bottom, flowing into the leak containment tank. The layers can be freely adjusted between the upper and lower layers every 6 centimeters, making it convenient to store chemical reagents of different heights and sizes. Each layer can bear a weight of more than 100kg* Each layer of metal laminate is equipped with an integrated injection molded polypropylene tray that is resistant to strong acid and alkali corrosion, to prevent dripping reagents from corroding the laminate;

7. The inside and outside of the cabinet are sprayed with epoxy resin paint, which has stronger corrosion resistance and is more suitable for use in harsh environments such as laboratories and workshops;

8. Strictly follow the OSHA regulations, and the cabinet body is equipped with static grounding conductive ports to facilitate the connection of static grounding wires and prevent the risk of sparks caused by static electricity accumulation;

*9. The cabinet is equipped with professional, standardized, and eye-catching patent warning signs. When illuminated by a flashlight, it can reflect light with high intensity and provide clear warnings even at night or in case of fire or power outage, making it easy to quickly identify during disaster relief;
