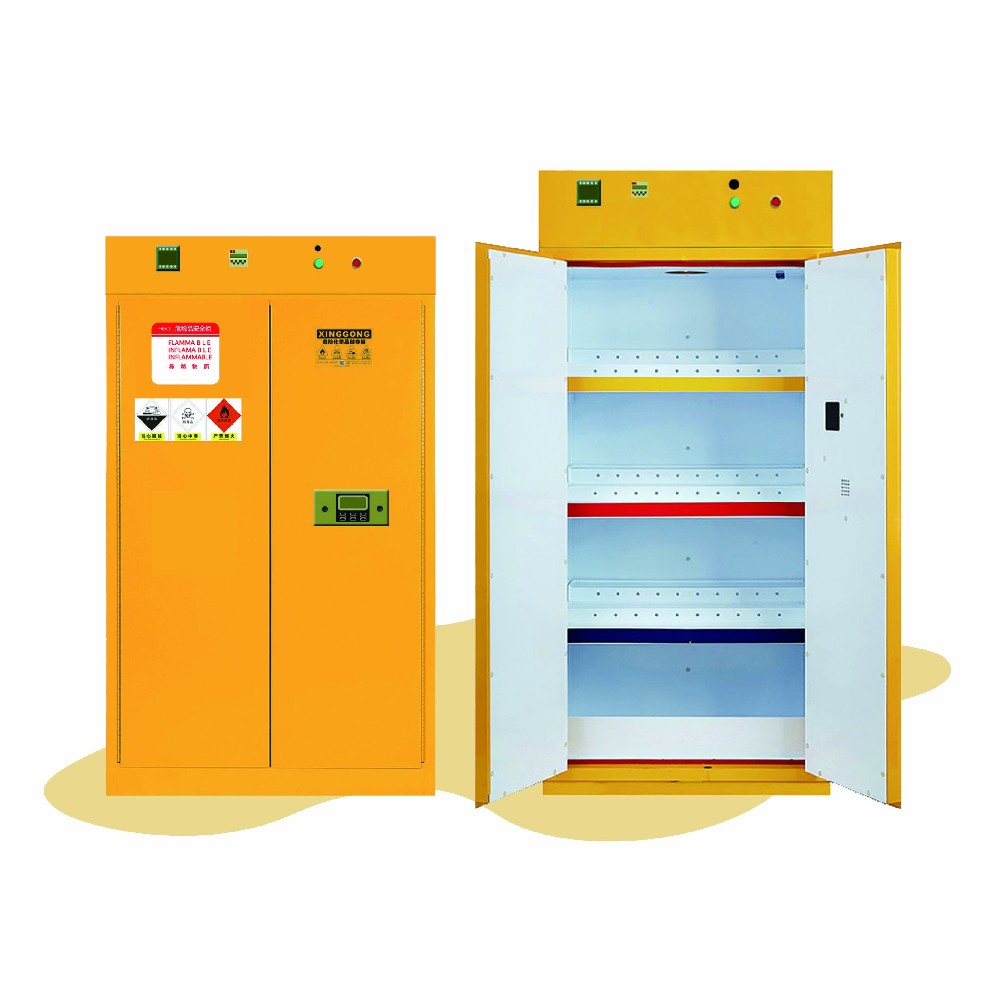

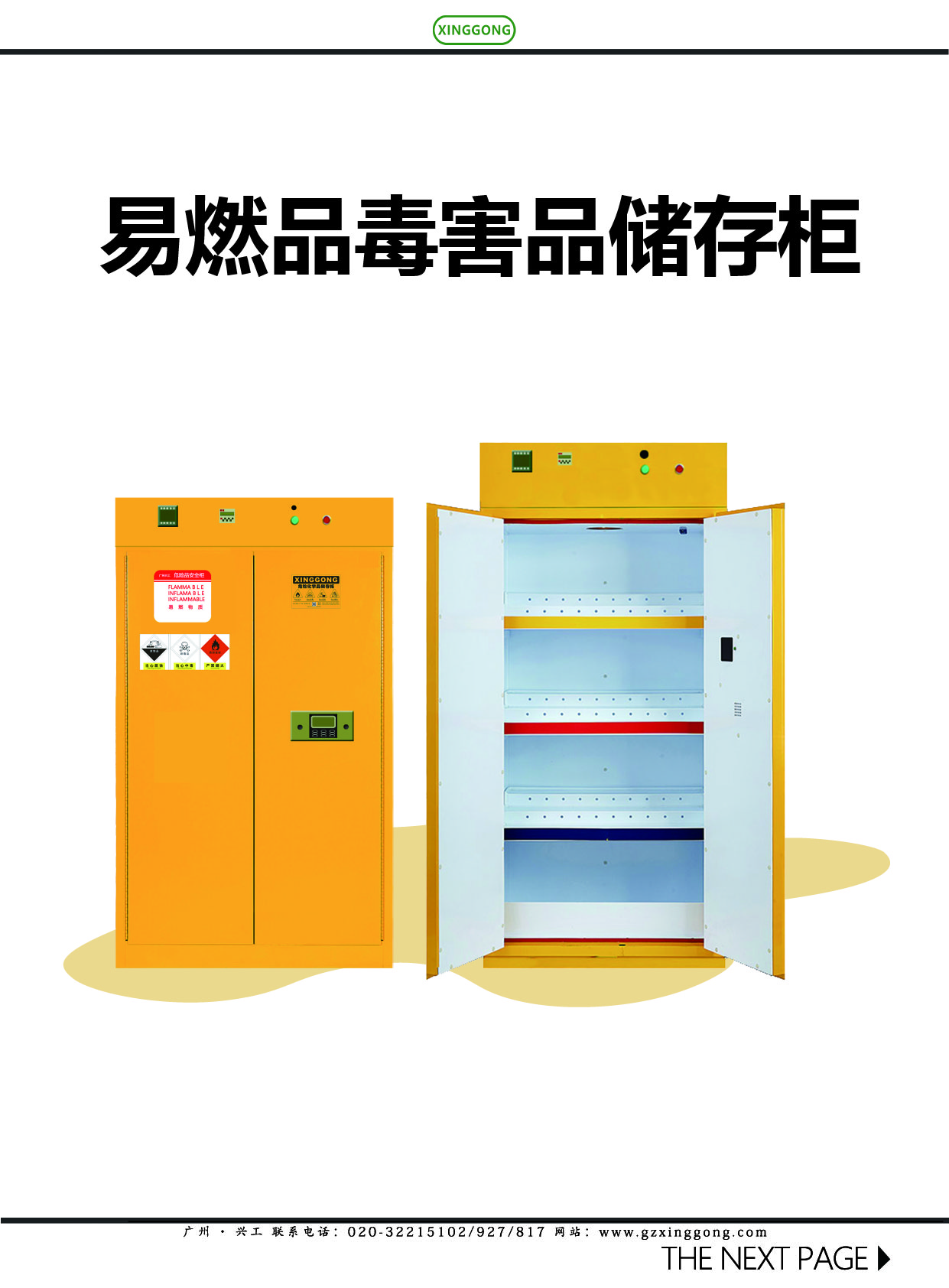

易制爆强腐蚀化学品柜-易燃品毒害品储存柜

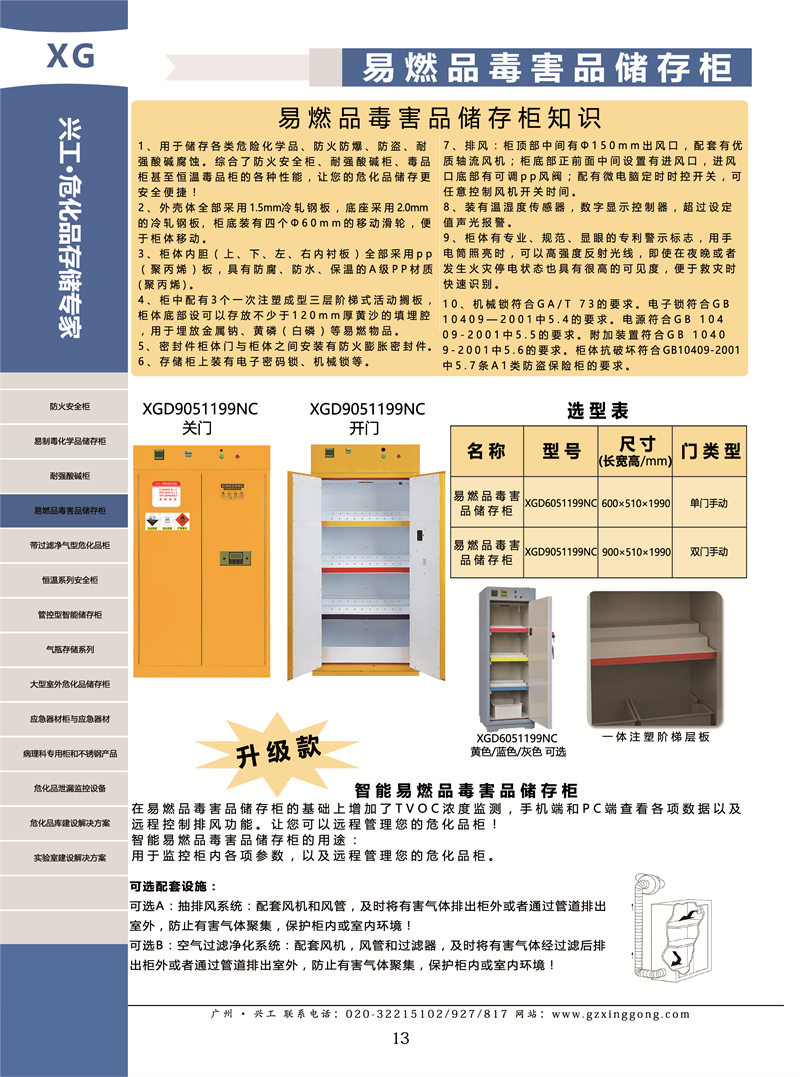

型号 | 外型尺寸 | 门类型 | 颜色 |
XGD6051199NC | 600×510×1990 | 单门 | 黄/蓝/灰 |
XGD9051199NC | 900×510×1990 | 双门 | 黄/蓝/灰 |
Parameters of flammable and toxic storage cabinets:
1. The outer shell body is made of 1.5mm cold-rolled steel plate, and the cabinet base is made of 2.0mm cold-rolled steel plate. The inner and outer surfaces are coated with acid washed phosphating epoxy resin powder and subjected to baking and curing treatment. The surface of each component of the cabinet body should be flat and smooth, and the chamfers, rounded corners, and circular lines should be uniform and consistent without burrs, sharp corners, or sharp edges. The top, door, and side of the shell body should be at least 1.5mm cold-rolled steel plate, with a double-layer structure with a gap of 1-1/2 inches; The anti destruction requirements should comply with the requirements of Class A1 anti-theft safes in Article 5.7 of GB10409-2001;
2. It integrates various performance features of fire safety cabinets, strong acid and alkali resistant cabinets, drug cabinets, and even temperature controlled drug cabinets, as well as other intelligent functions, to help you better manage hazardous chemicals;
3. The inner liner of the cabinet (upper, lower, left, and right inner lining panels) is all made of PP (polypropylene resin) board, which is made of A-grade PP material (polypropylene resin) with anti-corrosion, waterproof, and insulation properties. The thickness is at least 8mm, and it is formed in one go and easy to clean; A 100 * 50 * 200mm PP air inlet is set in the middle of the front of the cabinet bottom, and there is an adjustable PP air valve at the bottom of the air inlet; There is a 10mm leakage hole in the middle of the bottom plate of the cabinet, and the leakage hole is covered with a 60 mesh 304 * stainless steel mesh; A yellow sand (anti overturning) baffle with a height of 160mm is installed at the bottom of the cabinet. The bottom layer of the cabinet has a landfill chamber that can store no less than 120mm thick yellow sand, and a yellow sand height limit sign is pasted on the back plate of the cabinet for burying flammable materials such as metallic sodium and yellow phosphorus (white phosphorus); The bottom of the cabinet is equipped with four moving pulleys with a diameter of 60mm, which facilitate the movement of the cabinet body; There are two manually adjustable rollers behind the front wheels, which facilitate cabinet positioning;
4. There are three three-layer stepped PP polypropylene resin movable shelves in the middle of the cabinet, which are formed in one go. There are 3mm high liquid accumulation trays on the outer edge of each layer of stepped boards; The outer edge of the lower shelf is embedded with H48.5 * W16.5 (mm) PVC one-time formed guardrail, and a 0.5mm thick PVC decorative strip (warning red, warning blue, warning yellow) is embedded in the middle of the guardrail to distinguish the storage of alkaline, acidic drugs, and flammable materials; There is a row of air guides at the back of each shelf, with a step height of 50mm (including the height of the liquid accumulation tray). The A-grade PP material (polypropylene resin) layer frame is equipped with ventilation holes and can be flexibly adjusted. The outer edge of each layer of step board must have a liquid accumulation tray. The outer edge of the shelf is equipped with guardrails, which can be embedded with warning signs or item names. The number of layers is not less than 6;
5. There is a 150mm air outlet in the middle of the top of the cabinet, which is equipped with an AC220V, 50HZ, 0.18A axial flow fan. The maximum air volume is 326m3/h, the speed is 2550 rpm, and the ambient temperature is (-10~+70) ℃. The control switch is set in the upper right corner of the top of the cabinet. Before starting the fan, the air inlet in the middle below the cabinet door should be pushed open;
6. The rock wool cabinet should be filled with rock wool that has thermal insulation properties. The rock wool should meet the requirements of GB/T 11835-2007, with a density of 100 kg/m3 and a thickness of 40mm.
Fireproof expansion seals should be installed between the cabinet door and the cabinet body, and the seals should comply with the requirements of GB 16807-2009. (An environmentally friendly thermal expansion sealing strip should be installed between the cabinet door and the cabinet. When the temperature is between 150 ℃ -180 ℃, the sealing strip will expand locally, and when the temperature reaches 750 ℃, the sealing strip will expand completely, with an expansion ratio of 1:5 to ensure the safety of stored drugs.);
7. Magnetic locks, mechanical password locks, and other mechanical locks installed on storage cabinets should comply with the requirements of GA/T 73. Electronic locks should comply with the requirements of 5.4 in GB 10409-2001. The power supply should comply with the requirements of 5.5 in GB 10409-2001 Additional devices should comply with the requirements of 5.6 in GB 10409-2001 The anti damage requirements of the cabinet should comply with the requirements of Class A1 anti-theft safes in Article 5.7 of GB 10409-2001;
8. Ventilation control device 14.1 The bottom of the cabinet should be equipped with an air inlet and an adjustable air valve, which can rotate flexibly and control the air volume; The cabinet should be equipped with ventilation openings, and the maximum wind speed of the ventilation openings should not be less than 0.5m/s;
9. Equipped with a microcomputer timing switch that can automatically turn on and off the fan according to the user's set time. The power switch should have an indicator light to indicate whether the fan is working properly, and can be controlled automatically or manually;
10. The diameter of the ventilation duct should be diameter 160mm, and the ventilation duct should be resistant to high temperature, flame retardancy, and corrosion, in accordance with the requirements of JGJ 141.
11. The temperature and humidity control alarm device should be equipped with a temperature and humidity controller on the top of the cabinet, which can monitor the relative temperature and humidity inside the cabinet in real time, display the set and measured values digitally, and give an immediate alarm prompt if the temperature and humidity inside the cabinet exceed the set measurement value. Power supply AC220V ± 10% 50HZ, temperature control 0-99.9 ℃ (user set), humidity control 0-99.9% RH (user set);
12. Special security requirements: The mechanical lock key and electronic password lock password should be kept separately by two people, and both people should be present when opening;
13. The cabinet is equipped with professional, standardized, and eye-catching patent warning signs. When illuminated by a flashlight, it can reflect light with high intensity, and can provide clear warnings even at night or in case of fire or power outage, making it easy to quickly identify during disaster relief;
14. Equipped with professional hazardous chemical adsorption equipment: it can discharge and filter harmful gases inside the cabinet, suitable for almost all safety cabinets. It comes with a built-in fan pipeline, which can be connected and used immediately.
According to the NFX 15-211 class 2 standard, filter modules are selected based on the stored chemicals (four categories: organic, inorganic, acid, and comprehensive) for filtration efficiency;
Multiple intelligent IoT functions such as filter saturation monitoring, TVOC monitoring, temperature and humidity monitoring, and mobile remote monitoring are available!
